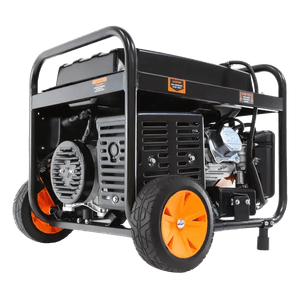

Model DF475XThe WEN DF475X is a 4,750-watt dual fuel portable generator equipped with an electric start, wheel kit, and CO shutdown sensor, offering reliable power for various applications.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN DF475X is a dual-fuel generator rated at 3800 running watts with 4750 starting watts. That combination gives it a clear split between the steady power it can sustain for ongoing loads and the extra surge capacity it can deliver when a motor-driven device kicks on.
Because it is dual-fuel, the DF475X is built around fuel flexibility while still anchoring its performance in those stated wattage figures, making it easy to frame what it can support continuously versus what it can handle at startup.
With dual-fuel operation, the DF475X pairs its 3800 running watts and 4750 starting watts with a stated runtime of 11 hours at 50 percent load. In practical terms, that runtime figure is most meaningful when you are planning for extended use at a moderate draw, since it ties directly to the generator’s ability to hold steady output over time rather than only delivering short bursts of starting power.
At 105.8 lbs and measuring 23.2 x 17.5 x 18.5 inches, the DF475X has a defined physical footprint that helps you plan where it will live, whether that is in a garage corner or a dedicated storage spot. The listed weight also sets expectations for handling and placement, since moving a 105.8 lb generator is a different experience than shifting a lighter unit.
Starting is covered by both recoil and electric systems, giving you two distinct ways to get the DF475X running depending on preference and situation. A built-in fuel gauge supports quick checks at a glance, which is especially useful when you are tracking usage over a longer run.
On the protection and compliance side, the generator is EPA compliant and includes a spark arrestor, while automatic voltage regulation is present to help manage output stability. Warranty coverage is stated at 2 years, adding a defined window of support tied directly to the product.
May struggle with startup surge
Exceeds capacity
Exceeds capacity
Exceeds capacity
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 2,900W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 3800W | 4750W | 11h | Not available |
| Propane | 3500W | 4350W | 7h | Not available |
| Running Watts | 3,800 watts |
|---|---|
| Starting Watts | 4,750 watts |
| Starting Watts (Gasoline) | 4,750 W |
| Starting Watts (Propane) | 4,350 W |
| Running Watts (Gasoline) | 3,800 W |
| Running Watts (Propane) | 3,500 W |
| Engine | 224 cc OHV 4-stroke |
|---|---|
| Engine Type | 224 cc OHV 4-stroke |
| Engine Displacement | 224 cc |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA |
| Voltage (AC) | 120/240 |
|---|---|
| Voltage (DC) | 12 |
| AC Frequency | 60 hz |
| GFCI Outlets | No |
| DC Outlets | 1x 12V 8A (cigarette lighter style) |
| AC Outlets | 1x Duplex 120V 20A (5-20R); 1x 120/240V 30A (L14-30R) |
| Dimensions | 23.2 x 17.5 x 18.5 inches |
|---|---|
| Weight | 105.8 lbs |
| Emissions Compliance | EPA |
|---|---|
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Battery | Battery |
| Carbon Monoxide Sensor | Yes |
| Commercial Warranty | 2 years |
| Covered Outlets | No |
| Electric Start | Yes |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 4 gallons |
| Included Accessories | Oil, propane hose, battery, and wheel kit |
| Indicators | No |
| Inverter | No |
| Overload Protection | Low oil and overload protection, CO monitoring |
| Parallel Capable | No |
| Recoil Start | Yes |
| Residential Warranty | 2 years |
| RV Ready | No |
| Starter Type | Recoil, Electric |
| Starting Components | Recoil, Electric |
| Starting System | Recoil, Electric |
| UPC | 44,459,904,755 |
| Warranty | 2 years |
| Wheels | Yes |
| Fuel Type | Dual-Fuel |
|---|
| Runtime @ 50% | 11 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 11 hours |
| Runtime @ 50% Load (Propane) | 7 hours |
