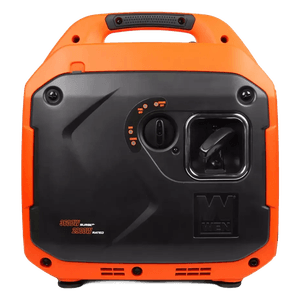

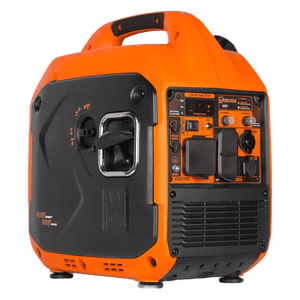

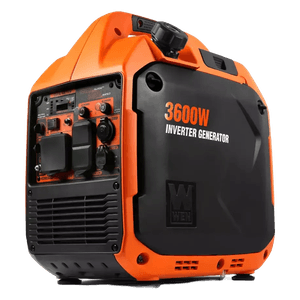

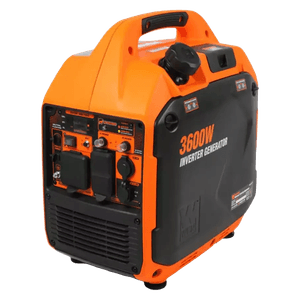

Model 56360iXThe WEN 56360iX is a 3600-watt RV-ready portable inverter generator designed for clean and quiet power, featuring a 149cc engine, fuel shutoff, and a CO shutdown sensor.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN 56360iX is a gasoline generator rated for 2900 running watts and 3600 starting watts. That combination supports steady output for ongoing loads while also providing extra surge capacity for equipment that needs a stronger push at startup.
Because it runs on gasoline, the 56360iX pairs its wattage figures with a familiar fuel choice, keeping the focus on straightforward portable power with clearly defined running and starting capability.
Gasoline power is matched with a 2900-watt running rating and a 3600-watt starting rating, giving the 56360iX room to handle both continuous demand and brief startup surges. In practical use, the running-watt figure is the anchor for what you can keep powered steadily, while the starting-watt figure helps when a load kicks on and needs extra power for a moment.
Noise is rated at 65 dBA, which sets expectations for how present the generator will sound while operating. For power quality, the generator lists 1.2 percent THD, a concrete indicator of clean output that suits electronics and other gear that benefits from low distortion. Runtime is listed at 5 hours at 50 percent load, providing a clear reference point for planning power sessions around mid-level demand.
At 46.3 lbs, the WEN 56360iX stays within a weight that supports moving it between storage and the point of use without the heft associated with larger units. Its dimensions of 17.4 x 11.6 x 19.4 inches also help define the footprint, making it easier to judge where it can sit during operation and where it can be stored when not in use.
Starting is handled through a recoil system, keeping operation direct and mechanical. Day-to-day monitoring is supported by a fuel gauge and indicators, which make it easier to track fuel status and operating conditions at a glance while the generator is running.
The 56360iX is EPA compliant and includes a spark arrestor, aligning its operation with defined emissions compliance and adding a safety-oriented component for exhaust spark control. It is also parallel capable, letting you connect it for expanded output when needed, and it is RV ready for straightforward compatibility with RV power needs. Covered outlets add a layer of protection for the connection points, while AVR automatic voltage regulation helps maintain steadier output as loads change. A 3-year warranty rounds out the package with multi-year coverage.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
May struggle with startup surge
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 1,900W
Peak surge (single motor): 1,200W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 2900W | 3600W | 5h | Not available |
| Running Watts | 2,900 watts |
|---|---|
| Starting Watts | 3,600 watts |
| Starting Watts (Gasoline) | 3,600 W |
| Running Watts (Gasoline) | 2,900 W |
| Engine | 149 cc OHV 4-stroke |
|---|---|
| Engine Type | OHV 4-stroke |
| Engine Displacement | 149 cc |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA |
| Voltage (AC) | 120 |
|---|---|
| Voltage (DC) | 12 |
| Phase | Single |
| Running Amps | 24.2 A |
| Peak Amps | 30 A |
| AC Frequency | 60 hz |
| GFCI Outlets | No |
| Neutral | Floating |
| USB Outlets | 2x 5V USB port (USB-A) |
| DC Outlets | 1x 12V 8A (cigarette lighter style) |
| AC Outlets | 1x Duplex 120V 20A (5-20R) 1x 120V 30A (TT-30R) |
| Total Harmonic Distortion (THD) | 1.2 % |
| Dimensions | 17.4 x 11.6 x 19.4 inches |
|---|---|
| Weight | 46.3 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | EPA |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Carbon Monoxide Sensor | Yes |
| Covered Outlets | Yes |
| Electric Start | No |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 1.6 gallons |
| Included Accessories | Oil, funnel, and tool kit |
| Indicators | Yes |
| Inverter | Yes |
| Noise Level | 65 dBA |
| Overload Protection | Low oil, overload and low fuel protection, CO monitoring |
| Parallel Capable | Yes |
| Recoil Start | Yes |
| Remote Start | No |
| RV Ready | Yes |
| Starter Type | Recoil |
| Starting Components | Recoil |
| Starting System | Recoil |
| UPC | 44,459,763,604 |
| Warranty | 3 years |
| Fuel Type | Gasoline |
|---|
| Runtime @ 50% | 5 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 5 hours |
