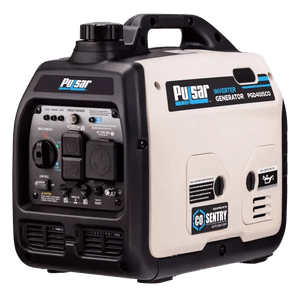

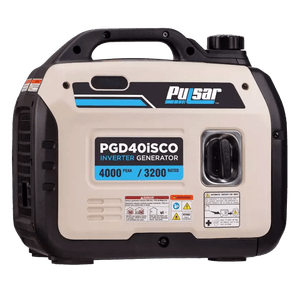

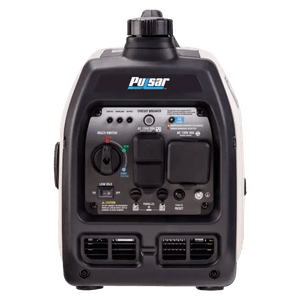

Model PGD40iSCOThe Pulsar PGD40iSCO is a 4,000-watt inverter generator featuring a 145cc OHV air-cooled engine, providing 3,200 running watts and 4,000 peak watts. It operates quietly at 59 dB and offers up to 4.5 hours of runtime at half load. Equipped with CO Sentry for carbon monoxide detection, it ensures safety during operation.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The Pulsar PGD40iSCO puts 3,200 running watts of gasoline-powered inverter output in a 46-pound body. That combination suits RV travelers and portable-appliance users who need useful capacity without a large wheeled machine. A TT-30R receptacle accepts a matching RV cord, while the household sockets give separate connections for smaller equipment.
The 1-gallon tank favors a compact package, with a rated 4.5 hours at half load setting the reference for fuel stops. It is a recoil-start generator, so the convenience is in carrying and connecting it rather than starting it remotely. CO shutdown and compatible parallel capability add to its usefulness. Buyers should weigh the easy transport against their session length and the appliances that need to share its 120V output.
The PGD40iSCO supplies 3,200 watts continuously on gasoline, with 4,000 watts available for brief starting surges. The extra starting capacity helps with motor-driven loads, but it is not an allowance for leaving extra appliances switched on throughout the session.
The 800-watt difference between continuous and starting ratings helps with a brief motor surge, but it does not establish that an RV air conditioner will start under every load combination. Check the appliance's requirements and the other equipment running before relying on the RV connection.
The 1-gallon gasoline tank supports a rated 4.5 hours at 50% load. Using the gasoline running rating, half load is 1,600 watts, which is below the generator's full continuous output. That is the operating point behind the runtime claim. Plan a fuel stop when a session extends beyond it, and expect higher demand to change the refueling interval.
Pulsar records a 59 dBA noise level. Consider that figure alongside the outdoor operating position and the distance to people using the powered equipment. Giving the generator space from seating and work areas helps make the setup more comfortable.
Inverter output electronically controls the AC supply, a useful consideration for a load mix that includes electronic equipment. It makes power quality part of the buying decision alongside total wattage.
Two NEMA 5-20R sockets accept standard household plugs at 120V, giving individual appliances or tools separate connection points. Their 20A receptacle rating does not mean each socket has an independent supply of that size; the generator and circuit limits still apply.
A TT-30R receptacle accepts a matching 120V, 30A RV cord. The generator's continuous output is below the receptacle's full 30A capacity, so the RV load needs to fit the generator rating. An air conditioner or other motor-driven appliance also needs its startup demand checked before other loads are added.
All connected loads share the available output. More sockets make distribution easier, but they do not multiply the running wattage.
Covered AC outlets help shield unused sockets from debris. The covers do not make the generator suitable for operation in wet conditions.
The 46-pound body is a portability strength, particularly when moving the generator between a vehicle and an outdoor setup. Its low weight makes carrying more practical than with a large backup machine. That is useful when each outing involves loading, unloading and a short carry.
The body measures 18.9 x 11.4 x 17.3 inches. Those dimensions help check whether it will pass through a storage opening and leave room for other equipment in a vehicle. Reserve a separate outdoor operating space with the clearances the manual requires.
Starting requires pulling the recoil cord, so the PGD40iSCO suits an owner comfortable with manual starting. Allow room to use the starter when placing the generator outside. Repeated stops and starts will therefore require another visit to the generator.
Low-oil protection helps protect the engine when lubrication falls below its operating requirement, and overload protection helps respond to excessive electrical demand. Regular oil checks and sensible load selection remain part of operation. CO shutdown adds an automatic response to carbon monoxide detected near the generator. It does not make indoor or enclosed operation safe.
The spark arrestor helps control sparks leaving the exhaust. Keep its inspection and cleaning in the maintenance routine so that this protection remains useful. Parallel capability offers a route to more output with a compatible generator and the correct connection equipment. The approved pairing and kit rating determine the usable combined output. The 3-year warranty defines the period of manufacturer support, subject to its terms.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
May struggle with startup surge
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 2,500W
Peak surge (single motor): 1,200W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
Pulsar is recognized in the generator industry for providing reliable and versatile power solutions, including dual-fuel and inverter models that cater to residential and commercial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 3200W | 4000W | 4.5h | Not available |
| Running Watts | 3,200 watts |
|---|---|
| Starting Watts | 4,000 watts |
| Starting Watts (Gasoline) | 4,000 W |
| Running Watts (Gasoline) | 3,200 W |
| Engine | 145 cc Ducar OHV 4-stroke |
|---|---|
| Engine Type | OHV 4-stroke |
| Engine Displacement | 145 cc |
| Engine Oil | 10W-30 |
| Engine Oil Capacity | 0.375 Qt |
| Spark Arrestor | Yes |
| Emissions Compliance | CARB, EPA |
| Voltage (AC) | 120 |
|---|---|
| Phase | Single |
| Running Amps | 26.7 A |
| Peak Amps | 33.3 A |
| AC Frequency | 60 hz |
| Current | 26.7 amps |
| GFCI Outlets | No |
| Neutral | Floating |
| AC Outlets | 1x Duplex 120V 20A (5-20R)1x 120V 30A (TT-30R) |
| Dimensions | 18.9 x 11.4 x 17.3 inches |
|---|---|
| Weight | 46 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | CARB, EPA |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Carbon Monoxide Sensor | Yes |
| Commercial Warranty | 3 years |
| Covered Outlets | Yes |
| Electric Start | No |
| Fuel Gauge | No |
| Fuel Tank Capacity | 1 gallons |
| Indicators | Yes |
| Inverter | Yes |
| Noise Level | 59 dBA |
| Overload Protection | Low oil and overload protection |
| Parallel Capable | Yes |
| Recoil Start | Yes |
| RV Ready | Yes |
| Starter Type | Recoil |
| Starting System | Recoil |
| UPC | 814,726,027,674 |
| Warranty | 3 years |
| Wheels | No |
| Fuel Type | Gasoline |
|---|
| Runtime @ 50% | 4.5 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 4.5 hours |
