Home/Generator/Westinghouse WGen3600v

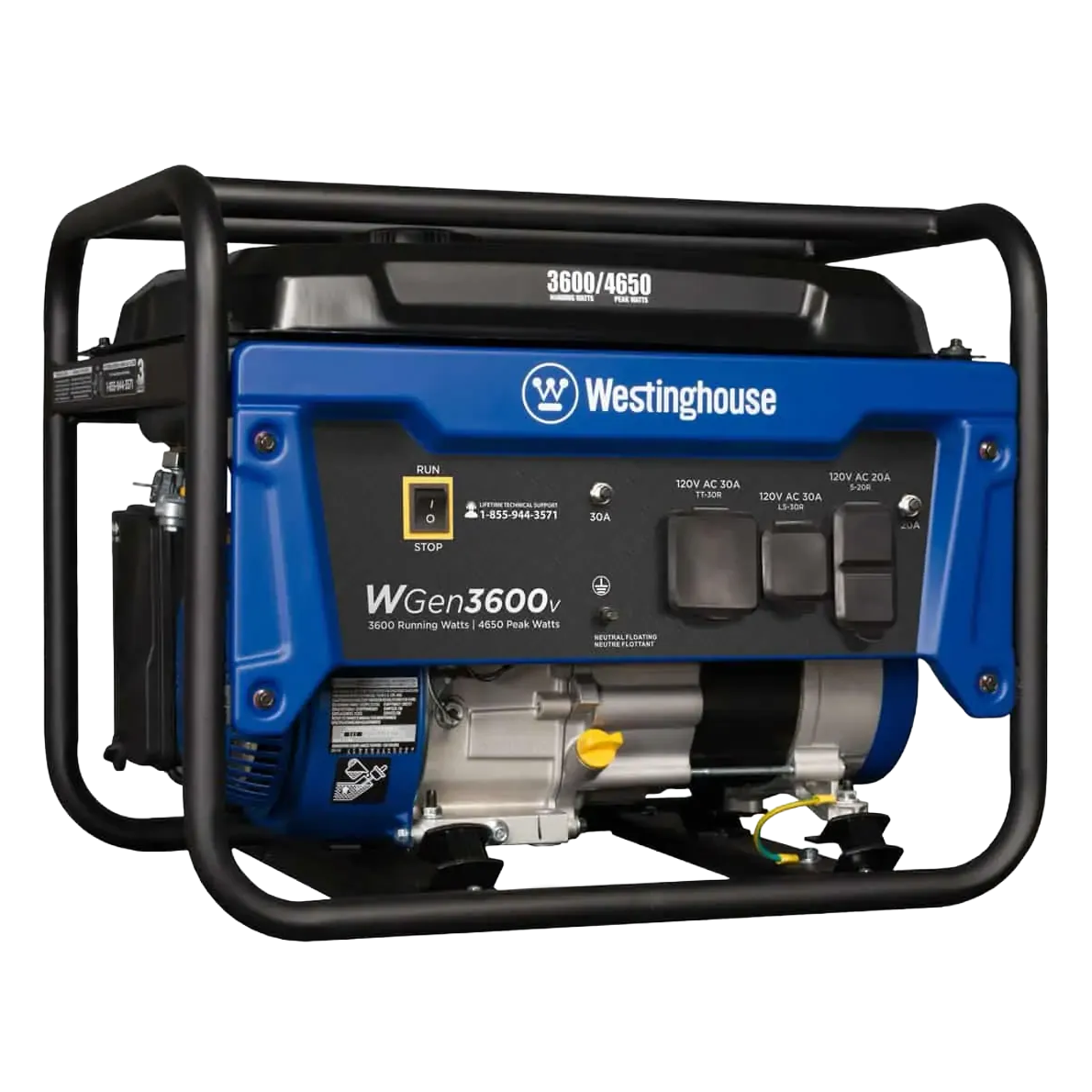

WestinghouseModel WGen3600v

Westinghouse 3,600W Gas Generator Review

The Westinghouse WGen3600v is a portable generator offering 3,600 running watts and 4,650 peak watts, powered by a 212cc 4-Stroke OHV engine. It features a 4-gallon fuel tank providing up to 14 hours of runtime, making it suitable for travel trailers and home backup power.

At a Glance

  • Running Watts
    3600W
  • Starting Watts
    4650W
  • Fuel Type
    Gasoline
  • Runtime (50%)
    10.5h
  • Noise Level
    68 dB
  • Weight
    99.5 lbs

Where to buy

Prices can change. We update these automatically.

    Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.

    Is this the right generator for you?

    Here's the quick tradeoff view — what this model does well, and where it may not fit.

    Pros

    • 3,600 running watts and 4,650 peak watts
    • 212cc 4-Stroke OHV Westinghouse Engine with cast iron sleeve
    • 4-gallon fuel tank with built-in fuel gauge
    • Up to 14 hours of runtime
    • RV Ready TT-30R 30A outlet
    • Automatic low oil shutdown
    • Rubber outlet covers for added protection
    • 3-Year Limited Warranty and Lifetime Technical Support

    Cons

    • Heavy weight of 99.5 pounds may affect portability
    • No electric start feature
    Best use cases
    RV / camping

    Summary

    The Westinghouse WGen3600v is a gasoline generator built around 3600 running watts and 4650 starting watts. That combination targets both steady power delivery and the extra surge needed when certain loads kick on, giving you room to run equipment that demands a higher start-up push than its ongoing draw.

    Because it runs on gasoline, the WGen3600v pairs its wattage with a 4-gallon fuel tank, framing it as a portable power option that can be refueled and put back to work without changing fuel types or setups.

    Power & Runtime

    With 3600 running watts on tap and up to 4650 starting watts available, the WGen3600v is designed to handle continuous loads while also covering short bursts of higher demand at start-up. In practical use, that starting headroom helps when powering devices that momentarily draw more power as they begin operating, while the running wattage defines what it can sustain once everything is up and running.

    Noise output is rated at 68 dBA, giving you a clear numeric reference for how loud it is during operation. Runtime is provided at two load points: 14 hours at 25 percent load and 10.5 hours at 50 percent load, which helps translate the 4-gallon tank into real planning for longer stretches of use. For power quality, THD is listed as under 23 percent, setting an expectation for the level of waveform distortion produced while generating electricity.

    Portability

    At 99.5 lbs, the WGen3600v sits in a weight range where moving it is a deliberate task rather than a grab-and-go lift, so planning where it will live and how it will be repositioned matters. Its physical footprint is listed as 23.3 x 17.5 x 18.7 inches, which helps you gauge storage space and how easily it can fit into a garage corner, shed shelf area, or a dedicated spot near where you plan to run extension cords.

    Features

    Starting is handled through a recoil starting system, keeping operation straightforward and fully manual when it is time to fire it up. A built-in fuel gauge supports day-to-day usability by letting you check fuel level at a glance, which pairs naturally with the stated runtime figures when you are deciding whether to refuel before a longer session.

    The WGen3600v is marked RV ready, aligning it with use cases that call for compatible portable power. It also includes a spark arrestor and covered outlets, both of which add practical protection during operation and when the unit is not actively powering anything. Automatic voltage regulation is included as AVR, which focuses on maintaining steadier output as conditions and loads change. Compliance is listed as CARB and EPA, and the generator is backed by a 3-year warranty.

    Recommended Audiences

    • RV owners needing RV-ready power
    • Shoppers who prefer gasoline-powered generators
    • Homeowners needing emergency backup for essential circuits
    • DIY enthusiasts and hobbyists needing reliable portable power
    Updated: Feb 24, 2026

    Score Breakdown

    5.3
    / 10
    Rank #41 of 78 in Conventional (2,500-5,000W)
    Value (25%)
    Quality (25%)
    Practical (18%)
    Features (12%)
    Percentile Rankings (within peer group)
    • Watts/$
    • Surge/$
    • Runtime/$
    • Warranty
    • THD (lower=better)
    • Build Quality
    • Noise (lower=better)
    • Portability
    • Outlet Variety
    • Feature Points

    What this generator can power

    At a Glance

    • Continuous:3,600W(recommended usable: 2,880W)
    • Surge:4,650W
    • Output:120V only
    • Inverter:No

    Big-item compatibility

    Refrigerator
    Yes
    Sump Pump (1/3 HP)
    Yes
    Well Pump (1 HP, 240V)
    No

    Needs 240V output

    Furnace Blower
    Yes
    Central AC (3 Ton, 240V)
    No

    Needs 240V output

    Window AC (10,000 BTU)
    Yes
    Electric Water Heater (240V)
    No

    Needs 240V output

    Electric Range/Oven (240V)
    No

    Needs 240V output

    Air Compressor (1 HP)
    Yes

    Example setups

    Essentials

    • Lights + Wi-Fi + Charging
    • Refrigerator
    • Furnace Blower
    • Sump Pump (1/3 HP)

    Est. running: 1,800W

    Peak surge (single motor): 2,000W

    Avoid starting multiple motor loads at the same time.

    Essentials + Comfort

    • Lights + Wi-Fi + Charging
    • Refrigerator
    • TV + Entertainment System
    • Microwave
    • Furnace Blower

    Est. running: 2,500W

    Peak surge (single motor): 1,200W

    Avoid starting multiple motor loads at the same time.

    Jobsite / Tools

    • Lights + Wi-Fi + Charging
    • Circular Saw (7 1/4")

    Est. running: 1,600W

    Peak surge (single motor): 2,800W

    Avoid starting multiple motor loads at the same time.

    These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.

    Westinghouse
    ReliabilityAExcellent

    About Westinghouse

    Westinghouse is renowned for its robust and reliable power generation equipment, offering a wide range of generators suitable for home and commercial use.

    Founded1886
    HQMooresville, North Carolina, USA
    Website (opens in a new tab)
    Support1-855-944-3571
    Support / Manuals (opens in a new tab)
    View all Westinghouse generators

    Warranty

    Coverage: 3 years

    Power by fuel

    FuelRunningStartingRuntime @50%Runtime @25%
    Gasoline3600W4650W10.5h14h

    Full Specifications

    Power

    Running Watts3,600 watts
    Starting Watts4,650 watts
    Starting Watts (Gasoline)4,650 W
    Running Watts (Gasoline)3,600 W

    Engine

    Engine212 cc Westinghouse OHV 4-stroke, cast iron sleeve
    Engine TypeOHV 4-stroke
    Engine Displacement212 cc
    Engine OilSAE 10W30
    Engine Oil Capacity0.6 Qt
    Spark PlugTorch F7TC
    Cylinder SleeveCast iron sleeve
    Spark ArrestorYes
    Emissions ComplianceCARB, EPA

    Electrical

    Voltage (AC)120
    PhaseSingle
    Running Amps30 A
    Peak Amps38.8 A
    AC Frequency60 hz
    Current30 amps
    GFCI OutletsNo
    DC OutletsNone
    AC Outlets1x Duplex 120V 20A (5-20R); 1x 120V 30A (L5-30R); 1x 120V 30A (TT-30R)
    Total Harmonic Distortion (THD)<23% %

    Dimensions

    Dimensions23.3 x 17.5 x 18.7 inches
    Weight99.5 lbs

    Other

    Automatic Low Oil ShutdownYes
    Emissions ComplianceCARB, EPA
    Automatic Voltage RegulationYes
    Automatic Voltage RegulatorYes
    Carbon Monoxide SensorNo
    Covered OutletsYes
    Electric StartNo
    Fuel GaugeYes
    Fuel Tank Capacity4 gallons
    Included AccessoriesOil, funnel, and tool kit
    IndicatorsNo
    InverterNo
    Noise Level68 dBA
    Overload ProtectionLow oil and overload protection
    Parallel CapableNo
    Recoil StartYes
    Remote StartNo
    RV ReadyYes
    Starter TypeRecoil
    Starting SystemRecoil
    UPC855,464,003,599
    Warranty3 years
    WheelsNo

    Core

    Fuel TypeGasoline

    Runtime

    Runtime @ 25%14 hours
    Runtime @ 50%10.5 hours
    Runtime @ 25% Load (Gasoline)14 hours
    Runtime @ 50% Load (Gasoline)10.5 hours
