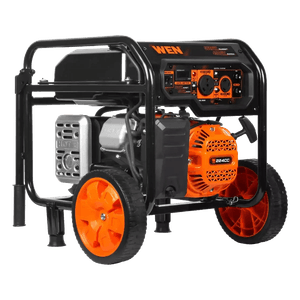

Model GN5600The WEN GN5600 is a 5,600-watt portable generator equipped with a 224cc engine, designed for both home backup and recreational use. It features a wheel and handle kit for easy transport, a 4.3-gallon gas tank providing up to 12.5 hours of half-load run time, and a variety of outlets including RV-ready and transfer-switch-ready receptacles.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN GN5600 is a gasoline generator rated for 4500 running watts with 5600 starting watts. That combination targets situations where steady output matters day to day, while still leaving extra headroom for the brief surge that can happen when equipment first kicks on.
Because it runs on gasoline, the GN5600 keeps fueling straightforward for shoppers who want a conventional setup, and its wattage figures set clear expectations for both continuous use and startup demands.
With 4500 running watts available for sustained load and 5600 starting watts for short bursts, the GN5600 is built to handle a mix of ongoing power needs and higher initial draw when starting certain devices. In practical terms, the running wattage is the number to watch for what you can keep operating at the same time, while the starting wattage is the cushion that helps when something needs extra power right at startup.
Runtime is listed at 12.5 hours at 50 percent load, which gives a concrete benchmark for planning longer stretches of operation without refueling. Since the fuel type is gasoline, that runtime ties directly to a familiar fueling routine for many users.
At 103.6 lbs, the GN5600 has a substantial carry weight that will influence how you move it around a garage, driveway, or campsite. Its physical footprint is also clearly defined by its 22.8 x 23.6 x 23 inch dimensions, which helps when deciding where it can be stored or where it can sit safely while running.
Those measurements make it easier to plan for transport space and placement, whether that is fitting it into a vehicle or setting it up with enough room around it for practical access.
Starting is handled through a recoil system, which keeps operation manual and straightforward when it is time to get the generator running. A built-in fuel gauge supports quick checks before and during use, and the presence of indicators adds at-a-glance status feedback while the unit is operating.
For use cases that benefit from cleaner, steadier output, automatic voltage regulation is included, helping the generator manage voltage as loads change. The GN5600 is also marked as RV ready, and it includes a spark arrestor, which is a relevant safety feature for certain outdoor settings. Compliance is listed as EPA, and the generator is backed by a 3-year warranty, adding longer-term coverage to the ownership package.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 3,500W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 4500W | 5600W | 12.5h | Not available |
| Running Watts | 4,500 watts |
|---|---|
| Starting Watts | 5,600 watts |
| Starting Watts (Gasoline) | 5,600 W |
| Running Watts (Gasoline) | 4,500 W |
| Engine | 224 cc OHV 4-stroke |
|---|---|
| Engine Type | OHV 4-stroke |
| Engine Displacement | 224 cc |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA |
| Voltage (AC) | 120 |
|---|---|
| Phase | Single |
| Running Amps | 37.5 A |
| Peak Amps | 46.7 A |
| AC Frequency | 60 hz |
| Current | 37.5 amps |
| GFCI Outlets | No |
| AC Outlets | 1x Duplex 120V 20A (5-20R)1x 120V 30A (L5-30R)1x 120V 30A (TT-30R) |
| Dimensions | 22.8 x 23.6 x 23 inches |
|---|---|
| Weight | 103.6 lbs |
| Emissions Compliance | EPA |
|---|---|
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Commercial Warranty | 3 years |
| Covered Outlets | No |
| Electric Start | No |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 4.36 gallons |
| Included Accessories | Funnel, tool kit, and wheel kit |
| Indicators | Yes |
| Inverter | No |
| Overload Protection | Low oil and overload protection |
| Parallel Capable | No |
| Recoil Start | Yes |
| Remote Start | No |
| RV Ready | Yes |
| Starter Type | Recoil |
| Starting System | Recoil |
| UPC | 44,459,954,996 |
| Warranty | 3 years |
| Wheels | Yes |
| Fuel Type | Gasoline |
|---|
| Runtime @ 50% | 12.5 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 12.5 hours |
