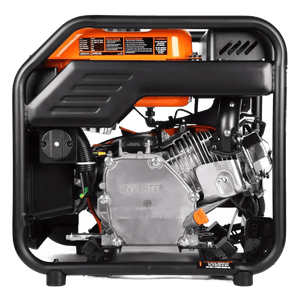

Model DF402iXThe WEN DF402iX is a 4000-watt dual fuel open frame inverter generator designed for RV use, featuring a CO shutdown sensor for safety.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN DF402iX is a dual-fuel generator rated for 3500 running watts with 4000 starting watts. That combination targets both steady power delivery and the extra surge needed when certain loads first kick on, while the dual-fuel design adds flexibility in how you keep it running.
With its stated wattage figures, the DF402iX sits in a range that can handle meaningful portable power demands while still keeping the focus on versatility through its fuel type.
Because the DF402iX runs on dual-fuel, it gives you two fueling options to keep power available when one fuel source is more convenient than the other. Output is rated at 3500 running watts with 4000 starting watts, which translates to a generator built to sustain ongoing loads while also covering brief startup surges.
Runtime is listed at 7 hours at 50 percent load, giving a concrete expectation for how long it can operate under a moderate demand level before refueling. Power quality is also clearly defined with 1.2 percent THD, a low distortion figure that aligns well with the goal of delivering clean inverter power.
At 66.1 lbs, the DF402iX lands in a weight range that remains manageable for transport while still reflecting the substance of a higher-output portable unit. Its dimensions of 19.8 x 13.8 x 18.9 inches help clarify the footprint you are working with, which matters when fitting it into a vehicle, a storage area, or a dedicated spot at a campsite.
Those measurements also make it easier to plan for clearance and placement, especially when you want a generator that can be moved and stowed without taking over an entire cargo area.
Starting is handled through a recoil system, keeping operation straightforward and self-contained. Day-to-day monitoring is supported by a fuel gauge and built-in indicators, which help you keep track of operating status and fuel level without guesswork.
The DF402iX is EPA compliant and includes a spark arrestor, which adds practical value for users who need equipment that aligns with emissions requirements and includes spark control hardware. It is also parallel capable, letting you scale output by pairing it with another compatible unit, and it is RV ready for direct use with RV power needs. Automatic voltage regulation is included as AVR, supporting steadier output under changing loads, and the generator comes with a 2-year warranty.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
May struggle with startup surge
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 2,500W
Peak surge (single motor): 1,200W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 3500W | 4000W | 7h | Not available |
| Propane | 3200W | 3600W | 9.5h | Not available |
| Running Watts | 3,500 watts |
|---|---|
| Starting Watts | 4,000 watts |
| Starting Watts (Gasoline) | 4,000 W |
| Starting Watts (Propane) | 3,600 W |
| Running Watts (Gasoline) | 3,500 W |
| Running Watts (Propane) | 3,200 W |
| Engine | 212 cc OHV 4-stroke |
|---|---|
| Engine Type | OHV 4-stroke |
| Engine Displacement | 212 cc |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA |
| Voltage (AC) | 120 |
|---|---|
| Voltage (DC) | 5 |
| Phase | Single |
| AC Frequency | 60 hz |
| GFCI Outlets | No |
| Neutral | Floating |
| DC Outlets | DC outlets2x 5V USB port (USB-A) |
| AC Outlets | 1x Duplex 120V 20A (5-20R)1x 120V 30A (TT-30R) |
| Total Harmonic Distortion (THD) | 1.2 % |
| Dimensions | 19.8 x 13.8 x 18.9 inches |
|---|---|
| Weight | 66.1 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | EPA |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Carbon Monoxide Sensor | Yes |
| Commercial Warranty | 2 years |
| Covered Outlets | No |
| Display Type | Inverter |
| Electric Start | No |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 1.85 gallons |
| Included Accessories | Funnel, tool kit, propane hose, and 2 altitude kits |
| Indicators | Yes |
| Inverter | Yes |
| Overload Protection | Low oil, overload and low fuel protection, CO monitoring |
| Parallel Capable | Yes |
| Recoil Start | Yes |
| Remote Start | No |
| Residential Warranty | 2 years |
| RV Ready | Yes |
| Starter Type | Recoil |
| Starting System | Recoil |
| UPC | 44,459,994,022 |
| Warranty | 2 years |
| Fuel Type | Dual-Fuel |
|---|
| Runtime @ 50% | 7 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 7 hours |
| Runtime @ 50% Load (Propane) | 9.5 hours |
