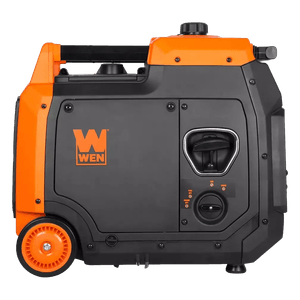

Model 56477iThe WEN 56477i is a 4800-watt portable inverter generator designed for RV use, offering clean power suitable for sensitive electronics, with a quiet operation and features like fuel shutoff to maximize lifespan.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN 56477i is a gasoline generator rated for 4000 running watts with 4800 starting watts. That combination gives it a clear split between steady output for ongoing loads and extra headroom for startup surges, all while staying within a gasoline-powered setup.
Running on gasoline, the 56477i delivers 4000 running watts and up to 4800 starting watts, which translates into stable power for continuous use with added capacity when devices first kick on. Its 62 dBA noise level helps frame what to expect in real-world operation, keeping sound output quantified rather than left to guesswork.
For runtime, the generator is listed at 7 hours at 50 percent load, giving a concrete expectation for mid-load operation. Power quality is also clearly defined with 1.2 percent THD, a low distortion figure that aligns well with the unit’s inverter design and supports cleaner output for devices that benefit from tighter waveform control.
At 72.7 lbs, the 56477i lands in a weight range that can be moved by a single person in some situations, while still being substantial enough to feel like a full-capability portable unit. Its dimensions of 23.8 x 12.6 x 22.1 inches also keep the footprint clearly bounded, which helps when planning storage space or fitting it into a vehicle or garage corner.
Starting is handled through a recoil system, keeping operation straightforward and fully manual from the first pull onward. Day-to-day usability is supported by a fuel gauge and built-in indicators, which provide quick visual confirmation of basic operating status while you are running loads.
On the compliance and safety side, the generator is EPA compliant and includes a spark arrestor, while covered outlets add a layer of protection for the connection points. It is also RV ready, and parallel capable, letting you connect it for expanded output when needed. Automatic voltage regulation is included as well, reinforcing voltage stability alongside the inverter design. A 3-year warranty rounds out the package with defined long-term coverage.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 2,900W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 4000W | 4800W | 7h | Not available |
| Running Watts | 4,000 watts |
|---|---|
| Starting Watts | 4,800 watts |
| Starting Watts (Gasoline) | 4,800 W |
| Running Watts (Gasoline) | 4,000 W |
| Engine | 224 cc OHV 4-stroke |
|---|---|
| Engine Type | OHV 4-stroke |
| Engine Displacement | 224 cc |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA |
| Voltage (AC) | 120 |
|---|---|
| Voltage (DC) | 12 |
| Phase | Single |
| Running Amps | 33.3 A |
| Peak Amps | 40 A |
| AC Frequency | 60 hz |
| Current | 33.3 amps |
| GFCI Outlets | No |
| Neutral | Floating |
| USB Outlets | 2x 5V USB port (USB-A) |
| DC Outlets | 1x 12V 8A (cigarette lighter style) |
| AC Outlets | 2x Duplex 120V 20A (5-20R) 1x 120V 30A (TT-30R) |
| Total Harmonic Distortion (THD) | 1.2 % |
| Dimensions | 23.8 x 12.6 x 22.1 inches |
|---|---|
| Weight | 72.7 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | EPA |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Commercial Warranty | 3 years |
| Covered Outlets | Yes |
| Electric Start | No |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 1.9 gallons |
| Included Accessories | Oil, funnel, and tool kit |
| Indicators | Yes |
| Inverter | Yes |
| Noise Level | 62 dBA |
| Overload Protection | Low oil, overload and low fuel protection |
| Parallel Capable | Yes |
| Recoil Start | Yes |
| RV Ready | Yes |
| Starter Type | Recoil |
| Starting System | Recoil |
| UPC | 44,459,564,775 |
| Warranty | 3 years |
| Wheels | Yes |
| Fuel Type | Gasoline |
|---|
| Runtime @ 50% | 7 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 7 hours |

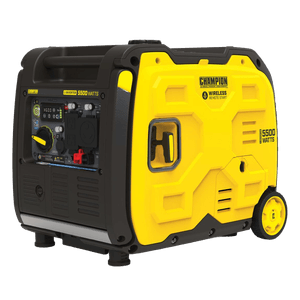

Generators worth considering based on similar specs and popular comparisons
