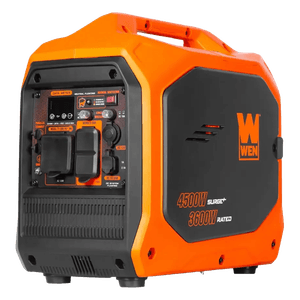

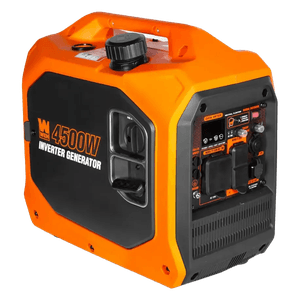

Model 56432iXThe WEN 56432iX is a gasoline generator with a maximum rated wattage of 4500 watts, designed for versatile power applications including RV use and emergency backup scenarios.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN 56432iX is a gasoline-powered inverter generator rated at 3600 running watts with 4500 starting watts, giving it enough surge capacity to handle startup loads while maintaining a strong continuous output. As an inverter model, it is built around delivering controlled power from a compact, purpose-driven package.
WEN describes itself as a brand known for delivering affordable, reliable generators and power equipment across residential and industrial needs, and the 56432iX fits neatly into that identity with a clear focus on practical gasoline power and a straightforward feature set.
On gasoline, the 56432iX delivers its full 3600 running watts and 4500 starting watts, aligning the primary rating with the provided per-fuel performance. Noise output is listed at 62 dBA, which helps set expectations for how it will sound in use when placed near a campsite or around a home during an outage.
Runtime is stated as 5.6 hours at 50 percent load, giving a concrete benchmark for mid-load operation. Total harmonic distortion is rated at 1.2 percent, reinforcing the unit’s clean inverter output for electronics that benefit from tight power quality.
At 52.9 lb, the 56432iX lands in a lightweight range for a generator, which supports frequent moving and simpler loading for trips or emergency use. Its physical footprint of 19.3 x 12 x 18.3 inches also keeps it compact enough to store without demanding much space.
That combination of low weight and restrained dimensions makes it easier to position where you need power, whether that is beside an RV or in a convenient spot outside the home.
Starting is handled via a recoil system, keeping operation straightforward and fully manual. A built-in fuel gauge helps you monitor fuel status at a glance, and the unit includes indicators to provide basic operational feedback while it is running.
For broader usability, the 56432iX is parallel capable for combining output with a compatible unit, and it is also RV ready for plug-and-play convenience with RV applications. Practical safety and durability touches include a spark arrestor and covered outlets, while automatic voltage regulation (AVR) supports stable output control. Compliance is listed as EPA and ANSI/PGMA G300-2023, and the generator is backed by a 3-year warranty.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 2,500W
Peak surge (single motor): 1,200W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 3600W | 4500W | 5.6h | Not available |
| Running Watts | 3,600 watts |
|---|---|
| Starting Watts | 4,500 watts |
| Starting Watts (Gasoline) | 4,500 W |
| Running Watts (Gasoline) | 3,600 W |
| Engine | 181 cc OHV 4-stroke |
|---|---|
| Engine Displacement | 181 cc |
| Engine Oil Capacity | 0.475 Qt |
| Spark Plug | LG A5RTC (NGK CR5HS o CR5HSB) |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA, ANSI/PGMA G300-2023 |
| Voltage (AC) | 120 |
|---|---|
| Voltage (DC) | 12 |
| Phase | Single |
| Running Amps | 30 A |
| Peak Amps | 37.5 A |
| AC Frequency | 60 hz |
| Current | 30 amps |
| GFCI Outlets | No |
| Neutral | Floating |
| USB Outlets | 2x 5V USB port (USB-A) |
| DC Outlets | 1x 12V 8A (cigarette lighter style) |
| AC Outlets | 1x Duplex 120V 20A (5-20R) 1x 120V 30A (TT-30R) |
| Total Harmonic Distortion (THD) | 1.2 % |
| Dimensions | 19.3 x 12 x 18.3 inches |
|---|---|
| Weight | 52.9 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | EPA, ANSI/PGMA G300-2023 |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Carbon Monoxide Sensor | Yes |
| Covered Outlets | Yes |
| Electric Start | No |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 1.27 gallons |
| Included Accessories | Funnel and tool kit |
| Indicators | Yes |
| Inverter | Yes |
| Noise Level | 62 dBA |
| Overload Protection | Low oil, overload and low fuel protection, CO monitoring |
| Parallel Capable | Yes |
| Recoil Start | Yes |
| Remote Start | No |
| Residential Warranty | 3 years |
| RV Ready | Yes |
| Starter Type | Recoil |
| Starting System | Recoil |
| UPC | 44,459,564,331 |
| Warranty | 3 years |
| Wheels | No |
| Fuel Type | Gasoline |
|---|
| Runtime @ 50% | 5.6 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 5.6 hours |
