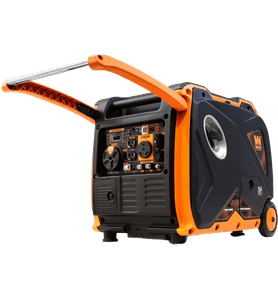

Model 56400iXThe WEN 56400iX is a super quiet 4000-watt RV-ready electric start portable inverter generator designed to provide clean and reliable power for sensitive electronics.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The WEN 56400iX is a gasoline generator rated for 3200 running watts and 4000 starting watts. That combination targets both steady power delivery and the extra surge needed when certain loads first kick on, while keeping everything centered on a familiar gasoline fuel setup.
Running at 3200 watts with 4000 starting watts, the 56400iX balances continuous output with added headroom for startup surges, and its inverter design is paired with a 1.2 percent THD figure that speaks directly to how cleanly it shapes its power for connected devices. Noise is listed at 58 dBA, which frames how present the generator will sound while operating, especially when it is running for extended periods.
On runtime, the generator is rated for 8.5 hours at 50 percent load, giving a clear expectation for mid-load operation. The fuel system is gasoline-based with a 2.2 gallon tank, tying that runtime figure to a compact onboard fuel supply.
With a listed weight of 99.2 lbs, the 56400iX lands in a range where moving it is a deliberate task rather than a grab-and-go lift. Its physical footprint is given as 23.2 x 18 x 20.1 inches, which helps set expectations for storage space and how easily it can be placed in a vehicle or set up at a campsite or work area.
WEN equips the 56400iX with both recoil and electric starting, giving two distinct ways to get it running depending on preference and situation. A fuel gauge supports quick checks on remaining gasoline, and the presence of indicators adds at-a-glance status feedback while the unit is operating.
For use cases that demand flexibility, it is parallel capable, allowing output to be scaled through parallel operation, and it is also RV ready for direct fit with RV-oriented power needs. The generator includes a spark arrestor and lists EPA compliance, and it also features AVR for automatic voltage regulation. Warranty coverage is stated at 3 years, providing a defined ownership support window.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
May struggle with startup surge
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 2,500W
Peak surge (single motor): 1,200W
Avoid starting multiple motor loads at the same time.
Est. running: 1,600W
Peak surge (single motor): 2,800W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
WEN is renowned for delivering affordable, reliable generators and power equipment, catering to various residential and industrial needs.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 3200W | 4000W | 8.5h | Not available |
| Running Watts | 3,200 watts |
|---|---|
| Starting Watts | 4,000 watts |
| Starting Watts (Gasoline) | 4,000 W |
| Running Watts (Gasoline) | 3,200 W |
| Engine | OHV 4-stroke |
|---|---|
| Engine Type | OHV 4-stroke |
| Engine Displacement | 212 cc |
| Engine Oil | SAE 30 |
| Engine Oil Capacity | 0.58 Qt |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA |
| Voltage (AC) | 120 |
|---|---|
| Voltage (DC) | 12 |
| Phase | Single |
| Running Amps | 26.7 A |
| Peak Amps | 33.3 A |
| AC Frequency | 60 hz |
| Current | 26.7 amps |
| GFCI Outlets | No |
| Neutral | Floating |
| Total Harmonic Distortion (THD) | 1.2 % |
| Dimensions | 23.2 x 18 x 20.1 inches |
|---|---|
| Weight | 99.2 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | EPA |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Carbon Monoxide Sensor | Yes |
| Covered Outlets | No |
| Electric Start | Yes |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 2.2 gallons |
| Indicators | Yes |
| Inverter | Yes |
| Noise Level | 58 dBA |
| Overload Protection | Low oil and overload protection |
| Parallel Capable | Yes |
| Recoil Start | Yes |
| RV Ready | Yes |
| Starter Type | Recoil, Electric |
| Starting System | Recoil, Electric |
| UPC | 44,459,056,409 |
| Warranty | 3 years |
| Wheels | Yes |
| Fuel Type | Gasoline |
|---|
| Runtime @ 50% | 8.5 hours |
|---|---|
| Runtime @ 50% Load (Gasoline) | 8.5 hours |
