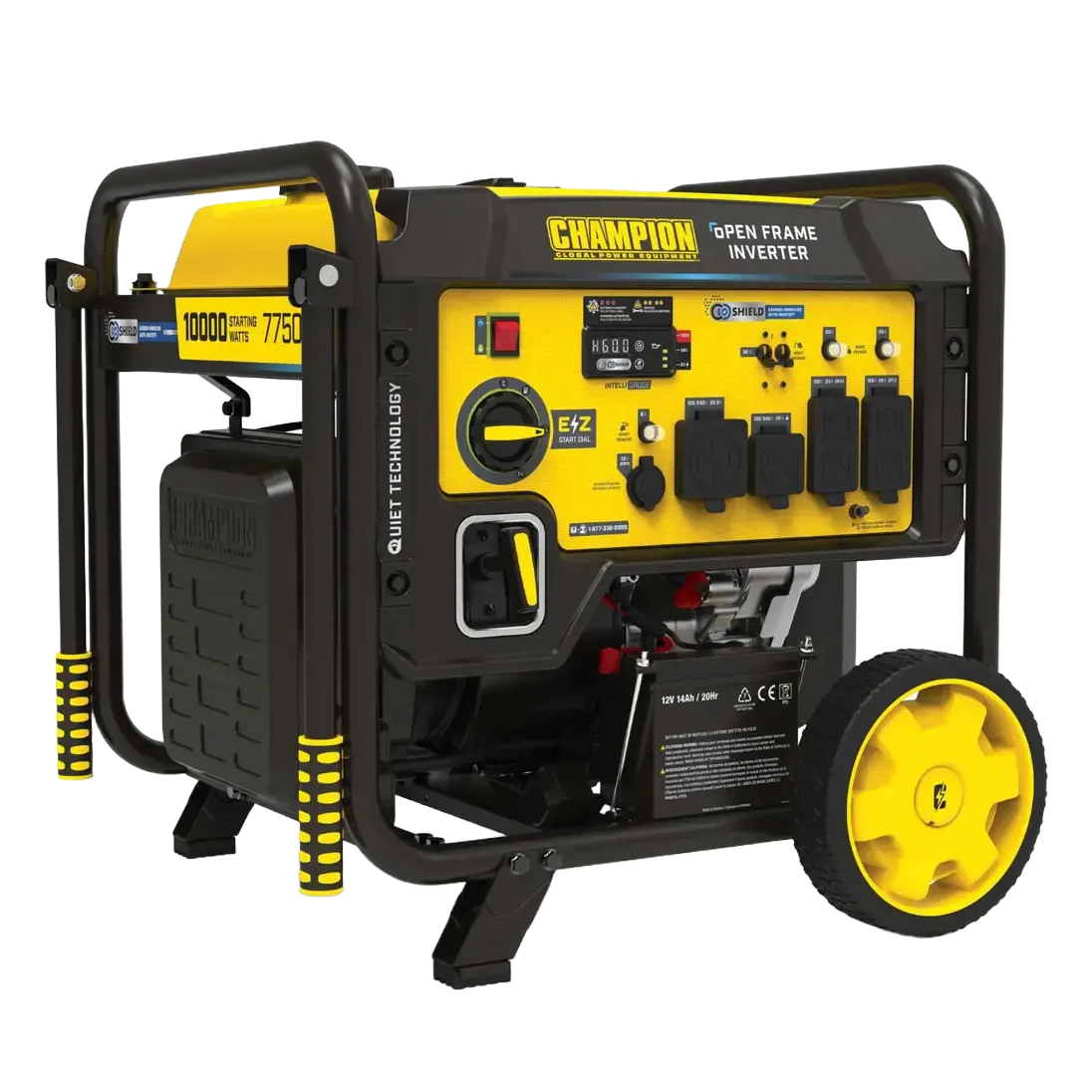

Model 201240The Champion Power Equipment 201240 is a 10,000-watt open frame inverter generator featuring electric start, CO Shield® carbon monoxide auto shutoff system, and is designed for home backup and recreational use.
Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.
Here's the quick tradeoff view — what this model does well, and where it may not fit.
The Champion Power Equipment 201240 is a gasoline generator rated for 7,750 running watts with 10,000 starting watts. That combination targets situations where you need strong continuous output while still having extra headroom for appliances or tools that draw more power when they first kick on.
Because it runs on gasoline, it pairs its wattage with a familiar fuel choice for many buyers, keeping the focus on straightforward, high-output backup power from a conventional generator format.
With 7,750 running watts and 10,000 starting watts, the 201240 is built to handle sustained electrical demand while also supporting higher startup surges. In practical use, the starting watt rating matters most when motors and compressors engage, while the running watt rating is what you plan around for steady loads once everything is operating.
Noise is rated at 72 dBA, which gives a clear, quantified expectation for sound output during operation. Runtime is listed at 12 hours at 25 percent load, tying endurance directly to a lighter draw scenario, and it is paired with a 7.45 gallon fuel tank to support longer stretches between refueling. Total harmonic distortion is rated at 3 percent, a concrete indicator of how cleanly the generator delivers power, and the unit is also identified as an inverter model, reinforcing its focus on controlled electrical output.
At 172 lbs, the 201240 is a substantial machine, and that weight signals a generator meant to be moved with intention rather than casually carried. Its dimensions of 27.1 x 28 x 26.2 inches further frame it as a sizable piece of equipment that will take up a defined footprint wherever it is stored or operated.
Those measurements help set expectations for transport and placement, whether you are planning space in a garage, a shed, or a dedicated area for backup power use.
Starting is supported through both recoil and electric systems, giving you two distinct ways to get the generator running depending on preference and circumstances. A fuel gauge adds day-to-day practicality by letting you check fuel status at a glance, and the presence of indicators supports quick operational checks without guesswork.
Safety and standards coverage is reinforced through compliance with EPA and ANSI/PGMA G300-2023, and a spark arrestor is included. Covered outlets add protection for the receptacles, while GFCI outlets provide an added layer of electrical safety. Automatic voltage regulation (AVR) helps manage output stability, and the generator is backed by a 3-year warranty.
Needs 240V output
Needs 240V output
Needs 240V output
Needs 240V output
Est. running: 1,800W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 5,000W
Peak surge (single motor): 2,000W
Avoid starting multiple motor loads at the same time.
Est. running: 3,100W
Peak surge (single motor): 4,500W
Avoid starting multiple motor loads at the same time.
These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.
Champion Power Equipment is a leading manufacturer of portable and standby generators, known for their reliability and affordability in both domestic and commercial markets.
| Fuel | Running | Starting | Runtime @50% | Runtime @25% |
|---|---|---|---|---|
| Gasoline | 7750W | 10000W | Not available | 12h |
| Running Watts | 7,750 watts |
|---|---|
| Starting Watts | 10,000 watts |
| Starting Watts (Gasoline) | 10,000 W |
| Running Watts (Gasoline) | 7,750 W |
| Engine | 459 cc OHV 4-stroke |
|---|---|
| Engine Type | 459 cc OHV 4-stroke |
| Engine Displacement | 459 cc |
| Spark Arrestor | Yes |
| Emissions Compliance | EPA, ANSI/PGMA G300-2023 |
| Voltage (AC) | 120 |
|---|---|
| Voltage (DC) | 12 |
| Running Amps | 64.6 A |
| Peak Amps | 83.3 A |
| AC Frequency | 60 hz |
| Current | 64.6 amps |
| GFCI Outlets | Yes |
| Neutral | Bonded to frame |
| DC Outlets | 1x 12V 8A (cigarette lighter style) |
| AC Outlets | 2x Duplex 120V 20A (5-20R) GFCI1x 120/240V 30A (L14-30R)1x 120/240V 50A (14-50R) |
| Total Harmonic Distortion (THD) | 3 % |
| Dimensions | 27.1 x 28 x 26.2 inches |
|---|---|
| Weight | 172 lbs |
| Automatic Low Oil Shutdown | Yes |
|---|---|
| Emissions Compliance | EPA, ANSI/PGMA G300-2023 |
| Automatic Voltage Regulation | Yes |
| Automatic Voltage Regulator | Yes |
| Carbon Monoxide Sensor | Yes |
| Commercial Warranty | 3 years |
| Covered Outlets | Yes |
| Electric Start | Yes |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 7.45 gallons |
| Included Accessories | Oil, funnel, dual port USB adapter, battery, and wheel kit |
| Indicators | Yes |
| Inverter | Yes |
| Noise Level | 72 dBA |
| Overload Protection | Low oil and overload protection |
| Parallel Capable | No |
| Recoil Start | Yes |
| Remote Start | No |
| RV Ready | No |
| Starter Type | Recoil, Electric |
| Starting Components | Recoil, Electric |
| Starting System | Recoil, Electric |
| UPC | 817,198,026,527 |
| Warranty | 3 years |
| Wheels | Yes |
| Fuel Type | Gasoline |
|---|
| Runtime @ 25% | 12 hours |
|---|---|
| Runtime @ 25% Load (Gasoline) | 12 hours |
