Home/Generator/Champion Power Equipment 201066

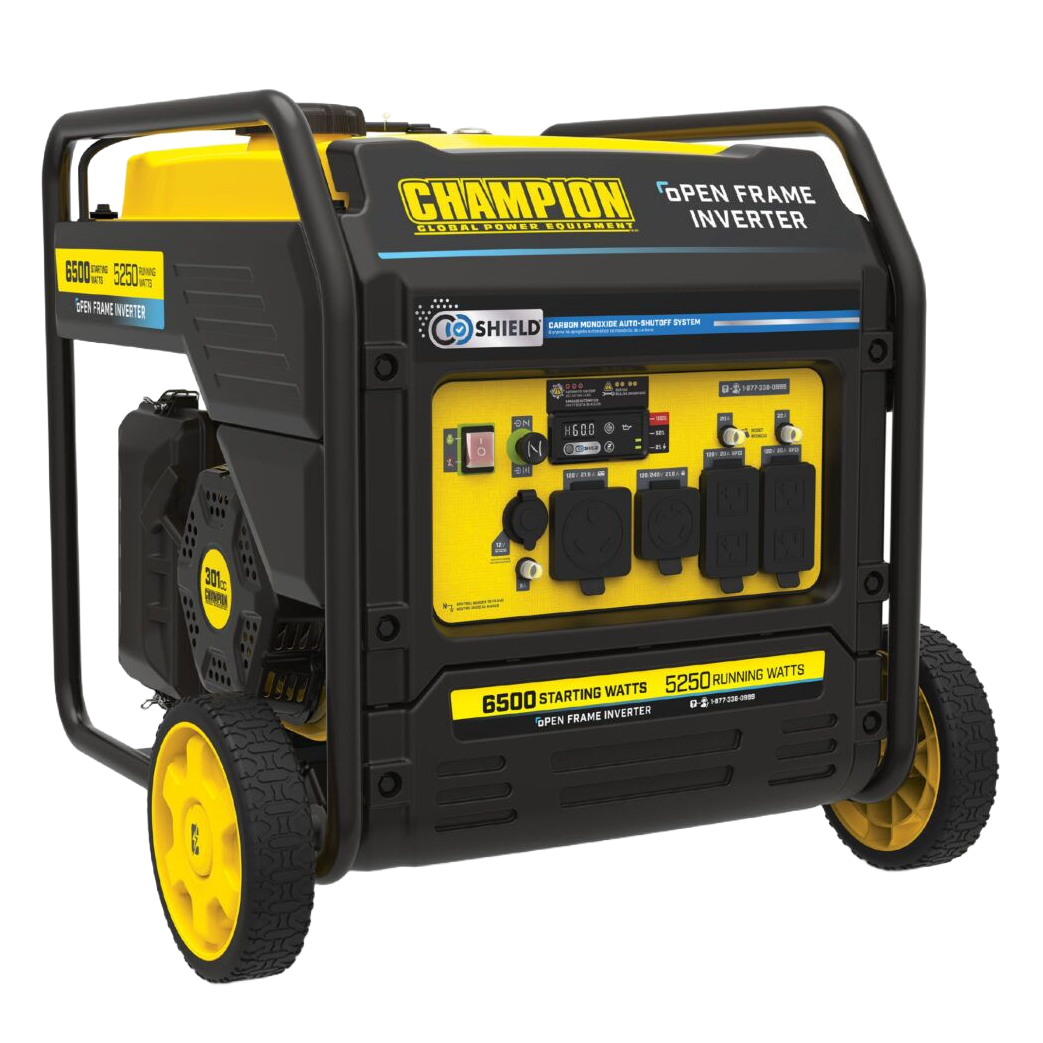

Champion Power EquipmentModel 201066

Champion Power Equipment 5,250W Gas Generator Review

The Champion Power Equipment 201066 is a 6500W open frame inverter generator designed to provide reliable power for various applications.

At a Glance

  • Running Watts
    5250W
  • Starting Watts
    6500W
  • Fuel Type
    Gasoline
  • Runtime (25%)
    13.5h
  • Noise Level
    69 dB
  • Weight
    123.2 lbs

Where to buy

Prices can change. We update these automatically.

    Disclosure: Some links may be affiliate links. Specs and comparisons are never hidden.

    Is this the right generator for you?

    Here's the quick tradeoff view — what this model does well, and where it may not fit.

    Pros

    • 6500W starting watts, 5250W running watts
    • Open frame inverter design
    • Recoil start
    • Multiple outlets including 120V 20A GFCI Duplex, 120V 30A (TT-30R), and 120/240V 30A (L14-30R)
    • CO Shield Carbon Monoxide Auto Shutoff System
    • Low oil shutoff switch
    • 4.3-gallon fuel tank capacity
    • Portable design with wheels

    Cons

    • heavy weight of 123.2 pounds
    • lacks electric start functionality
    Best use cases
    Sensitive electronicsRV / campingHome backup

    Summary

    The Champion Power Equipment 201066 is a gasoline generator rated for 5250 running watts with 6500 starting watts. That combination targets both steady output for ongoing loads and extra surge capacity for equipment that needs a stronger push at startup.

    Because it runs on gasoline, the 201066 fits buyers who want a straightforward fuel choice while still delivering substantial wattage for demanding use cases.

    Power & Runtime

    With 5250 running watts and 6500 starting watts, the 201066 is built to handle continuous power needs while also covering higher startup demands without immediately bogging down. Its noise level is listed at 69 dBA, which gives a concrete reference point for what you will hear while it is operating.

    Runtime is given as 13.5 hours at 25 percent load, pairing long stretch operation with a 4.3-gallon fuel tank for extended use between refueling stops. For power quality, total harmonic distortion is listed at under 3 percent, and the unit is identified as an inverter generator, which ties that low THD figure to cleaner output for devices that benefit from stable electricity.

    Portability

    At 123.2 lbs, the 201066 is a substantial unit, and its physical footprint of 26.6 x 25.5 x 24.6 inches helps set expectations for where it can be stored and how much space it will take up when deployed. Those dimensions also make it easier to plan for transport, whether that means fitting it into a vehicle cargo area or allocating room in a garage or shed.

    Features

    Starting is handled through a recoil starting system, keeping operation simple and direct. Day-to-day monitoring is supported by a fuel gauge and onboard indicators, which help you keep track of status at a glance while the generator is running.

    The feature set also leans into practical safety and usability. Covered outlets add a layer of protection for the receptacles, while GFCI outlets provide additional electrical protection. Automatic voltage regulation is included, reinforcing steadier output under changing loads, and the generator is RV-ready for compatible RV power needs. A spark arrestor is built in, and the unit lists compliance with CARB, EPA, and ANSI/PGMA G300-2023. Champion backs the 201066 with a 3-year warranty.

    Recommended Audiences

    • RV owners needing RV-ready power
    • Owners of sensitive electronics seeking clean inverter power
    • Shoppers who prefer gasoline-powered generators
    • Homeowners needing whole-house or jobsite backup power
    Updated: Feb 24, 2026

    Score Breakdown

    4.3
    / 10
    Rank #47 of 66 in Inverter (5,000W+)
    Value (25%)
    Quality (25%)
    Practical (18%)
    Features (12%)
    Features (1.0 pts)
    • Inverter+1
    Percentile Rankings (within peer group)
    • Watts/$
    • Surge/$
    • Runtime/$
    • Warranty
    • THD (lower=better)
    • Build Quality
    • Noise (lower=better)
    • Portability
    • Outlet Variety
    • Feature Points

    What this generator can power

    At a Glance

    • Continuous:5,250W(recommended usable: 4,200W)
    • Surge:6,500W
    • Output:120/240V
    • Inverter:Yes (clean power for electronics)

    Big-item compatibility

    Refrigerator
    Yes
    Sump Pump (1/3 HP)
    Yes
    Well Pump (1 HP, 240V)
    Yes
    Furnace Blower
    Yes
    Central AC (3 Ton, 240V)
    Maybe

    May struggle with startup surge

    Window AC (10,000 BTU)
    Yes
    Electric Water Heater (240V)
    No

    Exceeds capacity

    Electric Range/Oven (240V)
    No

    Exceeds capacity

    Air Compressor (1 HP)
    Yes

    Example setups

    Essentials

    • Lights + Wi-Fi + Charging
    • Refrigerator
    • Furnace Blower
    • Sump Pump (1/3 HP)

    Est. running: 1,800W

    Peak surge (single motor): 2,000W

    Avoid starting multiple motor loads at the same time.

    Essentials + Comfort

    • Lights + Wi-Fi + Charging
    • Refrigerator
    • TV + Entertainment System
    • Microwave
    • Window AC (10,000 BTU)
    • Furnace Blower

    Est. running: 3,500W

    Peak surge (single motor): 2,000W

    Avoid starting multiple motor loads at the same time.

    Jobsite / Tools

    • Lights + Wi-Fi + Charging
    • Circular Saw (7 1/4")
    • Air Compressor (1 HP)

    Est. running: 3,100W

    Peak surge (single motor): 4,500W

    Avoid starting multiple motor loads at the same time.

    These are estimates using typical wattage assumptions. Real appliances vary. Startup surges can be 2–6× the running wattage for motor-driven loads. 240V loads require a 120/240V generator and proper connection. Use a transfer switch or interlock kit; never backfeed a panel.

    Champion Power Equipment
    ReliabilityBGood

    About Champion Power Equipment

    Champion Power Equipment is a leading manufacturer of portable and standby generators, known for their reliability and affordability in both domestic and commercial markets.

    Founded2003
    HQSanta Fe Springs, California, USA
    Website (opens in a new tab)
    Support1-877-338-0999
    Support / Manuals (opens in a new tab)
    View all Champion Power Equipment generators

    Warranty

    Coverage: 3 years

    Power by fuel

    FuelRunningStartingRuntime @50%Runtime @25%
    Gasoline5250W6500W13.5h

    Full Specifications

    Power

    Running Watts5,250 watts
    Starting Watts6,500 watts
    Starting Watts (Gasoline)6,500 W
    Running Watts (Gasoline)5,250 W

    Engine

    Engine301 cc OHV 4-stroke.
    Engine TypeOHV 4-stroke
    Engine Displacement301 cc
    Spark ArrestorYes
    Emissions ComplianceCARB, EPA, ANSI/PGMA G300-2023

    Electrical

    Voltage (AC)120/240
    Voltage (DC)12
    Running Amps43.8/21.9 A
    Peak Amps54.2/27.1 A
    AC Frequency60 hz
    Current43.8/21.9 amps
    GFCI OutletsYes
    NeutralBonded to frame
    DC Outlets1x 12V 8A (cigarette lighter style)
    AC Outlets2x Duplex 120V 20A (5-20R) GFCI; 1x 120V 30A (TT-30R); 1x 120/240V 30A (L14-30R)
    Total Harmonic Distortion (THD)<3% %

    Dimensions

    Dimensions26.6 x 25.5 x 24.6 inches
    Weight123.2 lbs

    Other

    Automatic Low Oil ShutdownYes
    Emissions ComplianceCARB, EPA, ANSI/PGMA G300-2023
    Automatic Voltage RegulationYes
    Automatic Voltage RegulatorYes
    Carbon Monoxide SensorYes
    Commercial Warranty3 years
    Covered OutletsYes
    Electric StartNo
    Fuel GaugeYes
    Fuel Tank Capacity4.3 gallons
    Included AccessoriesOil, funnel, dual port USB adapter, and wheel kit
    IndicatorsYes
    InverterYes
    Noise Level69 dBA
    Overload ProtectionLow oil and overload protection
    Parallel CapableNo
    Recoil StartYes
    RV ReadyYes
    Starter TypeRecoil
    Starting SystemRecoil
    UPC817,198,025,704
    Warranty3 years
    WheelsYes

    Core

    Fuel TypeGasoline

    Runtime

    Runtime @ 25%13.5 hours
    Runtime @ 25% Load (Gasoline)13.5 hours
